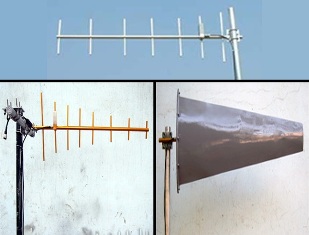

YAGI ANTENNA
SXY-45013 SCADA/TETRA-Band 330-512 MHz 13 dBi. Gain


Also available GOLD ANODIZED or FIBERGLASS RADOME Models

General:

UHF SCADA/TETRA-Band Yagi Antenna is rugged all weather model, uses high class anodized aluminum sections. Stainless steel mounting hardware is supplied with the UHF Tetra Band Yagi Antenna and the UHF SCADA/TETRA-Band Yagi Antenna comes in pre-assembled condition with permanently fixed elements in to the support boom and does not require any field tuning or adjustments. The UHF SCADA/TETRA-Band Yagi Antenna can be mounted to obtain horizontal or vertical polarization.


Design & Construction:

The UHF SCADA/TETRA-Band Yagi Antenna feed is designed with tunable feed eliminating the use of folded dipole. The unique design of the UHF SCADA/TETRA-Band Yagi Antenna uses a “Gamma” feed working as matching device for low VSWR and specified High gain. The UHF SCADA/TETRA-Band Yagi Antenna termination uses N-Female connector fixed on the UHF SCADA/TETRA-Band Yagi Antenna dipole. The balun and dipole feed point are sealed in Nylon radome to make it weather proof and are fixed on the boom of the UHF SCADA/TETRA-Band Yagi Antenna. All insulators are made of virgin TEFLON.


ELECTRICAL DATA
Frequency Range (MHz.)330-512
Gain (dBi.)13 dBi.
Bandwidth (MHz.)20
PolarizationV or H
Input Impedance (Ohms.)50
Beamwidth 3db (Degrees)40 (Vertical)
50 (Horizontal)
Front to Back Ratio18
VSWR1.5:1
RF Power Handling Capacity (Watts)250
Input TerminationN-Female
MECHANICAL DATA
Mounting HWStainless Steel
Weight (Kgs)2
Wind Rating (KMPH)200
Overall Length (Meters)1.6
Shipping Length (Meters)1.6
Support Boom
- Material
- Cross Section
- O.D. (mm)

Aluminum
Square
25
Elements
- Material
- Cross Section
- O.D. (mm)

Aluminum
Round
19
Maximum Mount Pipe Diameter
- mm (Inches)
52
(2)

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.
