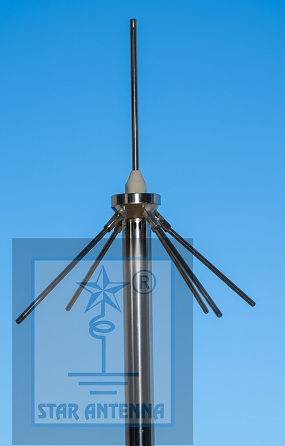

GROUND PLANE OMNI DIRECTIONAL ANTENNA
SXG-4503 420-512 MHz 3 dBi. Gain


General:
This Ground Plane Antenna is rugged all weather model, uses high class chrome plated Brass and does not require any field tuning or adjustments. The antenna when packed comes with ground radials removed from the antenna body for ease of packing and transportation. The compact size of antenna allows easy handling and specially designed mounting hardware result in fast installation.

Design & Construction:
The all Brass antenna prevents formation of “Signal Cells”, thereby eliminating intermodulation with in the antenna. It is specially designed for Omni directional requirements, broadband for base station. Antenna termination and feed cable lie enclosed inside the mounting pipe for complete weather protection.


ELECTRICAL DATA
Frequency Range (MHz)420-512
Gain (dBi)3 dBi.
Bandwidth (MHz)20
Input Impedance (Ohms)50
Radiation PatternOmni
VSWR1.5 : 1
RF Power Handling Capacity (Watts)250
Input TerminationUHF/N-F
MECHANICAL DATA
MaterialsAll Brass
Mounting HWStainless Steel
CanopyNylon
Weight (Kgs)1.5
Wind Rating (KMPH)200
Shipping Length (Meters)0.5
Mounting Clamp Size
Suitable upto - mm. (Inches)
51
2

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.


VSWR CURVE
Click here to Send Request

AZIMUTH RADIATION PATTERN
Click here to Send Request

ELEVATION RADIATION PATTERN
Click here to Send Request
