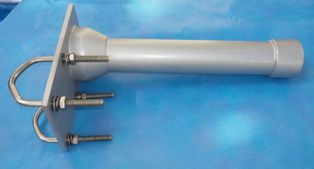

HELICAL RHCP / LHCP ANTENNA
SCH-1812 1800-1900 MHz 12 dBi. Gain


General:
These SCH series Helical Antennas are light weight, Broadband and Rugged Helical Antennas , supplied with stainless steel mounting hardware.

For wide bandwidth operation with a low SWR, the matching section uses a rigid coaxial feed with helical antenna termination , N-Female, mounted at the end for easy antenna feed connectivity.


Both Right Hand Circular Polarized (RHCP) and Left Hand Circular Polarized (LHCP) models are available.


Rust proof Stainless Steel mounting hardware is supplied with these Helical Antennas.


ELECTRICAL DATA
Frequency Range (MHz.)1800-1900
Gain (dBi.)12 dBi.
Bandwidth (MHz.)100
PolarizationLHCP / RHCP
Input Impedance (Ohms.)50
Beamwidth 3db (Degrees)50
Front to Back Ratio18
VSWR1.5 : 1
RF Power Handling Capacity (Watts)150
Input TerminationN-Female
MECHANICAL DATA
Mounting HWStainless Steel
Weight (Kgs)2
Wind Rating (KMPH)180
Overall Length (Meters)0.7
Shipping Length (Meters)0.8
Radiating MaterialCopper
Radome MaterialFiber Glass
Maximum Mount Clamp
Diameter - mm. (Inches)
52

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.


VSWR CURVE
