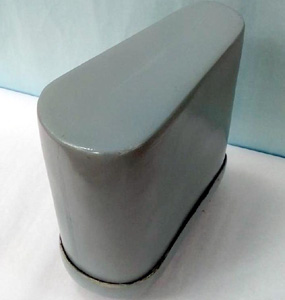

| LOW PROFILE TRAIN ANTENNA | ||
| SXLP-T | 156-174 MHz | 2.15 dBi. Gain |
A Low Profile Train Antenna is suitable to mount on a train or a bus. It is an Omni Directional Mobile Antenna enclosed in a fiberglass radome with a stream lined low profile shape with a low obstruction height. | ||
| ELECTRICAL DATA | |
| Frequency Range (MHz) | 156-174 |
| Gain (dBi) | 2.15 dBi. |
| Bandwidth (MHz) | 18 |
| Polarization | Vertical |
| Input Impedance (Ohms) | 50 |
| Radiation Pattern | Omni |
| Beamwidth 3db (Degrees) | 74 (Vertical) |
| VSWR | < 1.3 : 1 |
| RF Power Handling Capacity (Watts) | 100 |
| Input Termination | N-Female |
| MECHANICAL DATA | |
| Dimensions - L x B x H (mm) | 246 x 120 x 230 |
| Mounting HW | Stainless Steel |
| Weight (Kgs) | 1.10 |
| Wind Rating (KMPH) | 210 |
| Radome Material | Fiberglass |
| Please Note: |
1. Specifications are subject to change without any notice. 2. Customized in-band and out of band versions are available on request. |
