| HORN ANTENNA | ||
| SXH-90012 | 700-1300 MHz | 9-14 Gain |

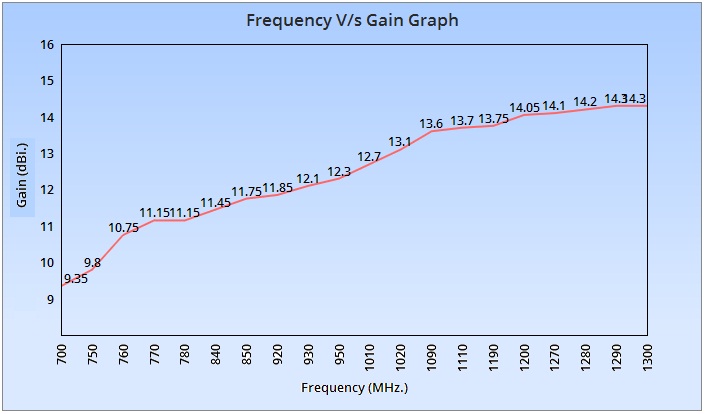

Standard gain Horn antenna for 900 GSM band 700-1300 MHz., manufactured by using top quality aluminium material. The Horn antenna can be used for wide band transmission and reception. Reference gain graph is depicted with the specification for using the Horn as a standard gain antenna for testing antenna gain. Suitable mounting arrangement is fitted with the horn to change the plane of polarization, V/H, in the field. | ||
 |
| ELECTRICAL DATA | |
| Frequency Range (MHz) | 700-1300 |
| Gain (dBi) | 9-14 |
| Bandwidth (MHz) | 600 |
| Polarization | Vertical |
| Input Impedance (Ohms) | 50 |
| VSWR | 1:1.4 or Better |
| RF Power Handling Capacity (Watts) | 500 |
| Input Termination | N-Female |
| MECHANICAL DATA | |
| Materials | Aluminium |
| Weight (Kgs) | 7 |
| Wind Rating (KMPH) | 200 |
| Please Note: |
1. Specifications are subject to change without any notice. 2. Customized in-band and out of band versions are available on request. |
