PANEL ANTENNA
SPL-240014 2400-2483 MHz 14 dBi. Gain


General:

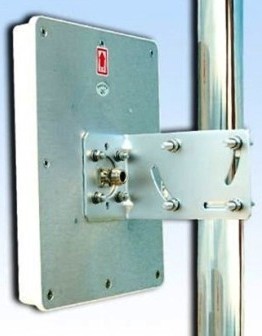

WLAN 2.4 GHz. Panel Antenna is light weight weather proof. The antenna is supplied with complete mounting kit suitable for choosing any direction for radiation. The antenna maintains consistent fault free working over years of use.

Our standard guarantee terms for one year for free replacement/repair makes it an ideal choice.

Dimension = 235 x 190 x 35 mm


ELECTRICAL DATA
Frequency Range (MHz)2400-2483
Gain (dBi)14 dBi.
Bandwidth (MHz)83
PolarizationVertical
Input Impedance (Ohms)50
Beamwidth 3db (Degrees)30°
Beamwidth Hpp (Degrees)33°
Front to Back Ratio25 dB.
VSWR1:1.5 or Better
RF Power Handling Capacity (Watts)50
Input TerminationN-Female
Lightning ProtectionDC Ground


MECHANICAL DATA
MaterialsAluminum
Mounting HWStainless Steel
Weight (Kgs)1.6
Wind Rating (KMPH)140
Operating Temperature-40℃~+65℃
Radome MaterialPCB

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.
