GRID PARABOLIC ANTENNA

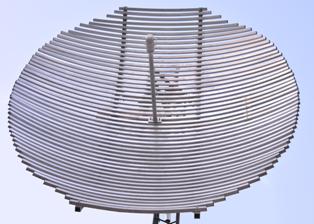

SPP-1428 Grid Kit 1350-1550 MHz 28.5 dBi. Gain


Grid parabolic Antenna Kit

To minimize and save on freight charges the Grid parabolic Antennas with dish diameter of 2.4 meter and of larger size are supplied in Grids Kits. The Grid members are supplied in form of Kit. It also saves handling charges and easy transportation to the site. The Grid Kit can be assembled with simple hand tools on ground or directly on the antenna mast which does away with hauling of the large sized dish on to the antenna mast.

Design Features:

The parabolic shape focuses energy at the feed point of the Grid Parabolic Antenna Kit. These parabolic antennas have a narrow focused beam of energy and relatively high gain compared to many other types of antennas.

Radiating elements and matching stub of Grid Parabolic Antenna Kit are made of Aluminum. The compact size of the antenna allows easy handling and specially designed mounting arrangement results in fast installation. The Grid Parabolic Antenna Kit operates at D.C. ground with low resistance discharge path for protection against lightning and immunity to noise.


ELECTRICAL DATA
Frequency Range (MHz)1350-1550
Gain (dBi)28.5 dBi.
Bandwidth (MHz)120
PolarizationV or H
Input Impedance (Ohms)50
Radiation PatternDirectional
Beamwidth 3db (Degrees)6
Front to Back Ratio45
VSWR1.3 : 1
RF Power Handling Capacity (Watts)150
Input TerminationN-Female
Lightning ProtectionDirect Ground


MECHANICAL DATA
MaterialsAll Aluminum
Mounting HWStainless Steel
Weight (Kgs)55
Wind Rating (KMPH)180
Support Pipe O.D. (mm)25
Support Pipe MaterialAluminum
Diameter of Parabolic
Reflector (Centimeters)		240 (8 feet)
Radiating MaterialAluminum
Parabolic Reflector MaterialAluminum
Maximum Mount Pipe Diameter
- mm (Inches)		 115
4.5

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.
