QUADRIFILAR HELIX ANTENNA
SQFH-4065 400-410 MHz 5 dBi. Gain


Quadrifilar Helix Antenna for Weather Satellite Atmospheric Research purpose provides horizon to horizon coverage.

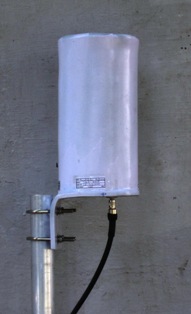

Quadrifilar Helix Antenna uses a self facing design and is a full wave Helix for perfect RHCP/LHCP, circularly polarized and enclosed in a Fiberglass Radome, suitable for a Pole-Mount.

The Helix uses copper tubing for filar windings and the low VSWR below 1:1.5 provide perfect matching and increased antenna efficiency with the peak gain of 5 dBi.

Filars are held symetrical to the vertical axis to maintain purity of the radiation.

This antenna has been supplied to "EuroLinX a division of Videohouse nv | Media Facilities | Belgium"


ELECTRICAL DATA
Frequency Range (MHz)400-410
Gain (dBi)5 dBi.
Bandwidth (MHz)10
PolarizationRHCP/LHCP
Input Impedance (Ohms)50
Beamwidth 3db (Degrees)>150
VSWR<1.5
RF Power Handling Capacity (Watts)50
Input TerminationN/TNC Female


MECHANICAL DATA
MaterialsCopper
Mounting HWStainless Steel
Weight (Kgs)2
Wind Rating (KMPH)150
Mounting TypePole Mount U Clamp
Radome MaterialFiberglass
Radome O.D. (mm)180
Radome Length (mm.)320

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.
