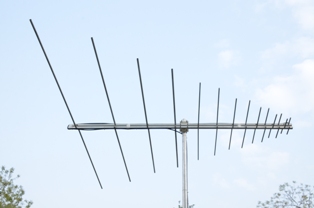

LOG PERIODIC DIPOLE ANTENNA
SLP-153000 15-3000 MHz 12 dBi. Gain


General:
This log periodic dipole antenna, is designed to provide wideband directional signals from HF through to the UHF band, 3000 MHz.

Output is provided via one 50 Ohms coaxial in the frequency range: 15-3000 MHz. This log periodic dipole antenna system is suitable for Wide-Band operations.

The antenna is designed to operate at D.C. ground.

Gain on different Frequencies.

15-40 MHz. : 3 dBi.
40-80 MHz. : 4 dBi.
80-200 MHz. : 7.5 dBi.
200-1000 MHz. : 10 dBi.
1000-3000 MHz. : 12 dBi.


ELECTRICAL DATA
Frequency Range (MHz) 15-3000
Gain (dBi)12 dBi.
Bandwidth (MHz)2985
PolarizationVertical or Horizontal
Input Impedance (Ohms)50
Radiation PatternDirectional
Front to Back Ratio20
VSWR1:1.8
Input TerminationN-Female
Lightning ProtectionDirect Ground


MECHANICAL DATA
MaterialsAluminum
Mounting HWStainless Steel
Weight (Kgs)35
Wind Rating (KMPH)170
Support Boom
- Material
- Cross Section
- O.D. (mm)
Aluminum
Square
37
Overall Length of
Each Boom - Meters		 6.20
Maximum Mount Pipe Diameter
- mm (Inches)		 52

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.
