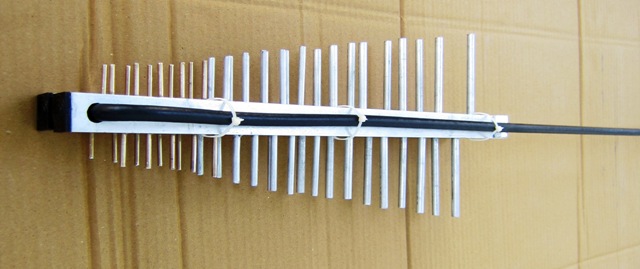

LOG PERIODIC DIPOLE ANTENNA
SLP-7003000 700-3000 MHz 9 dBi. Gain


General:
This log periodic dipole antenna, enclosed in a fiberglass radome is highly suitable for SNOW BOUND AREAS designed to provide wideband use as a directional antenna from GSM 700 MHz., 900 MHz., 1800 MHz. and 2100 MHz.

Output is provided via one 50 Ohms coaxial in the frequency range: 700-3000 MHz. This log periodic dipole antenna system is suitable for Wide-Band operations, including Monitoring.

All the screws, nuts and bolts of log periodic dipole antenna are made of stainless steel.

The antenna is designed to operate at D.C. ground.


ELECTRICAL DATA
Frequency Range (MHz)700-3000
Gain (dBi)9 dBi.
Bandwidth (MHz)2300
PolarizationV or H
Input Impedance (Ohms)50
Radiation PatternDirectional
Beamwidth 3db (Degrees)50
VSWR1:2
RF Power Handling Capacity (Watts)150 Watts
Input TerminationN-Female
Lightning ProtectionDirect Ground


MECHANICAL DATA
Mounting HWStainless Steel
Weight (Kgs)5
Wind Rating (KMPH)160
Overall Length (Meters)1.5
Shipping Length (Meters)1.75
Support Boom
- Material
- Cross Section
- O.D. (mm)
Aluminum
Square
25
Elements
- Material
- Cross Section
- O.D. (mm)
Aluminum
Round Tube
Maximum Mount Pipe Diameter
- mm (Inches)		 51
(2)

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.
