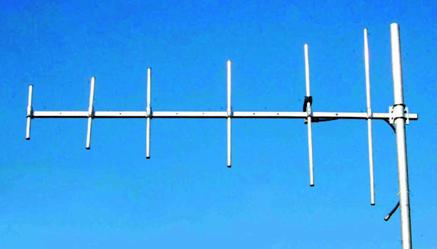

YAGI ANTENNA
SXY-15010 136-174 MHz 10 dBi. Gain


General:
This rugged, all weather yagi antenna is made of high quality ¾ inch round aluminum elements and 1 inch square aluminum boom. Element clamps are of molded die-cast aluminum. Special mounting hardware permit to mount the antenna either for Horizontal or Vertical polarization.

The yagi antenna when packed comes with elements removed from the antenna boom for ease of packing and transportation. It can be assembled at site with simple hand- tools.

Design & Construction:
The yagi antenna "Gamma" feed eliminates the use of folded dipole. The unique design of the Yagi antenna feed which works as matching device together with antenna tuning facility to keep the VSWR low resulting in increased efficiency of the Yagi antenna. The antenna uses N-type Female termination which is fixed on the Driven Element.

The antenna can be mounted to obtain either horizontal or vertical polarization.


ELECTRICAL DATA
Frequency Range (MHz) 136-174
Gain (dBi)10 dBi.
Bandwidth (MHz)8
PolarizationV or H
Input Impedance (Ohms)50
Beamwidth 3db (Degrees)51 (Vertical)
71 (Horizontal)
Front to Back Ratio16
VSWR1.5 : 1
RF Power Handling Capacity (Watts)150
Input TerminationN-Female


MECHANICAL DATA
Mounting HWStainless Steel
Weight (Kgs)4
Wind Rating (KMPH)190
Overall Length (Meters)2
Shipping Length (Meters)2
Support Boom
- Material
- Cross Section
- O.D. (mm)
Aluminum
Square
25
Elements
- Material
- Cross Section
- O.D. (mm)
Aluminum
round
19
Maximum Mount Pipe Diameter
- mm (Inches)		 52
(2)

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.
