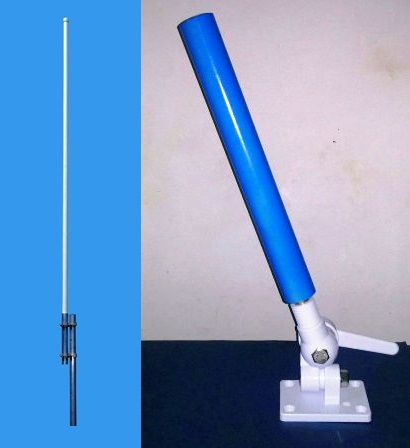

MARINE BAND OMNI DIRECTIONAL ANTENNA
SXC-M 156-163 MHz 3 Gain


General:
The Marine Band Omni Directional Antenna is rugged all weather model, for use for sea-going vessels. The radiator is protected against any corrosion by radome. The compact size of antenna allows easy handling and specially designed mounting hardware results in fast installation.


Design & Construction:
It is specially designed for Omni directional requirements, with wide bandwidth of this antenna makes it highly suitable Marine band use. Antenna termination and feed cable lie enclosed inside the mounting pipe for complete weather protection.

Marine Antenna with TILT Mounting stand is also available for special mounting.


ELECTRICAL DATA
Frequency Range (MHz)156-163
Gain (dBi)3
Bandwidth (MHz)7
Input Impedance (Ohms)50
Radiation PatternOmni
VSWR1.5:1
RF Power Handling Capacity (Watts)250
Input TerminationUHF/N-F


MECHANICAL DATA
Mounting HWStainless Steel
Weight (Kgs)4
Wind Rating (KMPH)200
Shipping Length (Meters)1
Mounting Clamp Size
Suitable upto - mm. (Inches)		51
2

Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.


VSWR CURVE
Click here to Send Request

AZIMUTH RADIATION PATTERN
Click here to Send Request

ELEVATION RADIATION PATTERN
Click here to Send Request
