SPL-240014
SPL-240014
Model
SPL-240014
Frequency
2400-2483 MHz
Gain
14 dBi. Gain

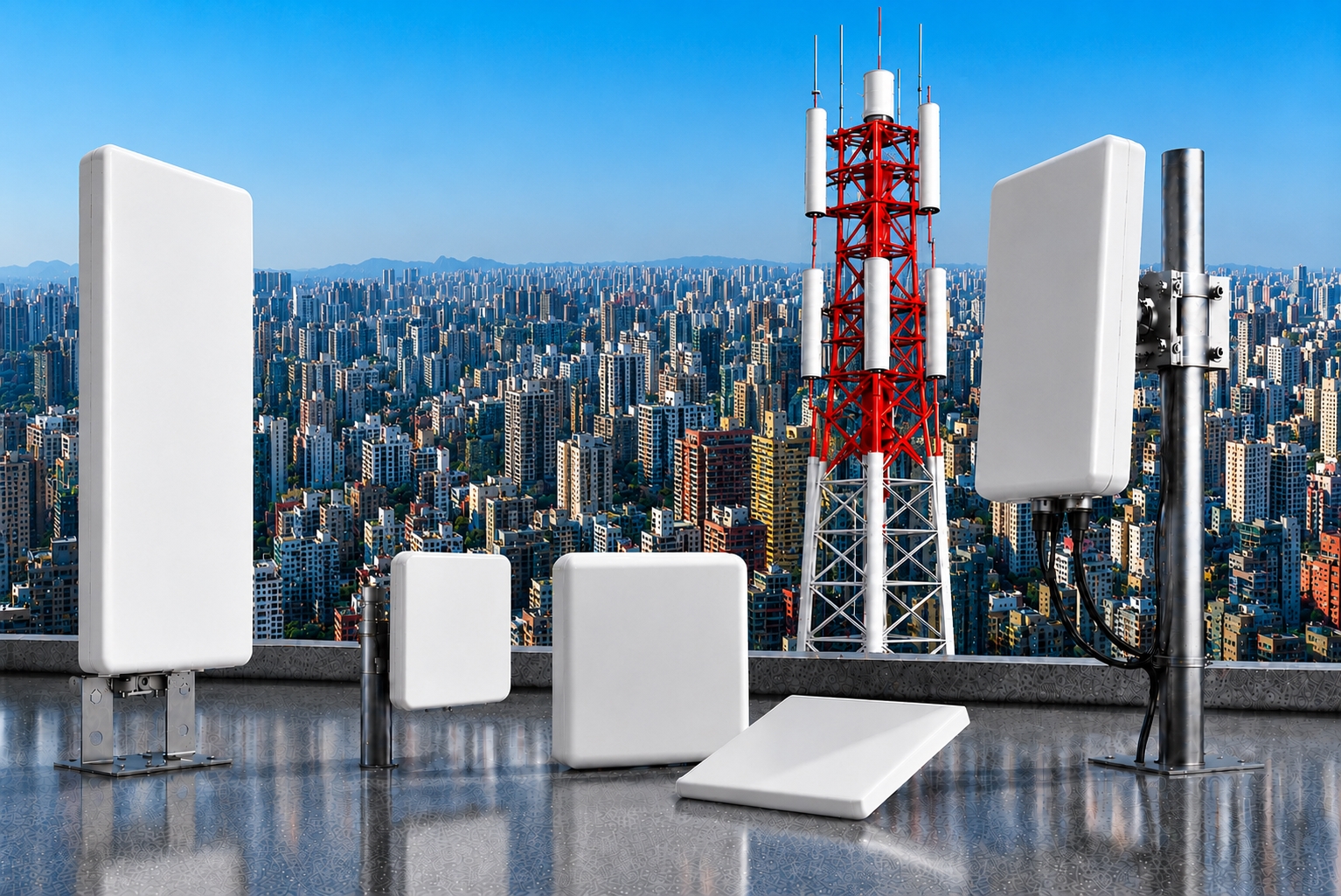

WLAN 2.4 GHz. Panel Antenna is light weight weather proof. The antenna is supplied with complete mounting kit suitable for choosing any direction for radiation consistent fault free working over years of use.
Our standard guarantee terms for one year for free replacement/repair makes it an ideal choice.
Dimension = 235 x 190 x 35 mm
Technical Specifications
SPL-240014
| ELECTRICAL DATA | |
|---|---|
| Frequency Range (MHz) | 2400-2483 |
| Gain (dBi) | 14 dBi. |
| Bandwidth (MHz) | 83 |
| Polarization | Vertical |
| Input Impedance (Ohms) | 50 |
| Beamwidth 3db (Degrees) | 30° |
| Beamwidth Hpp (Degrees) | 33° |
| Front to Back Ratio | 25 dB. |
| VSWR | 1:1.5 or Better |
| RF Power Handling Capacity (Watts) | 50 |
| Input Termination | N-Female |
| Lightning Protection | DC Ground |
| MECHANICAL DATA | |
|---|---|
| Materials | Aluminum |
| Mounting HW | Stainless Steel |
| Weight (Kgs) | 1.6 |
| Wind Rating (KMPH) | 140 |
| Operating Temperature | -40℃~+65℃ |
| Radome Material | PCB |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
