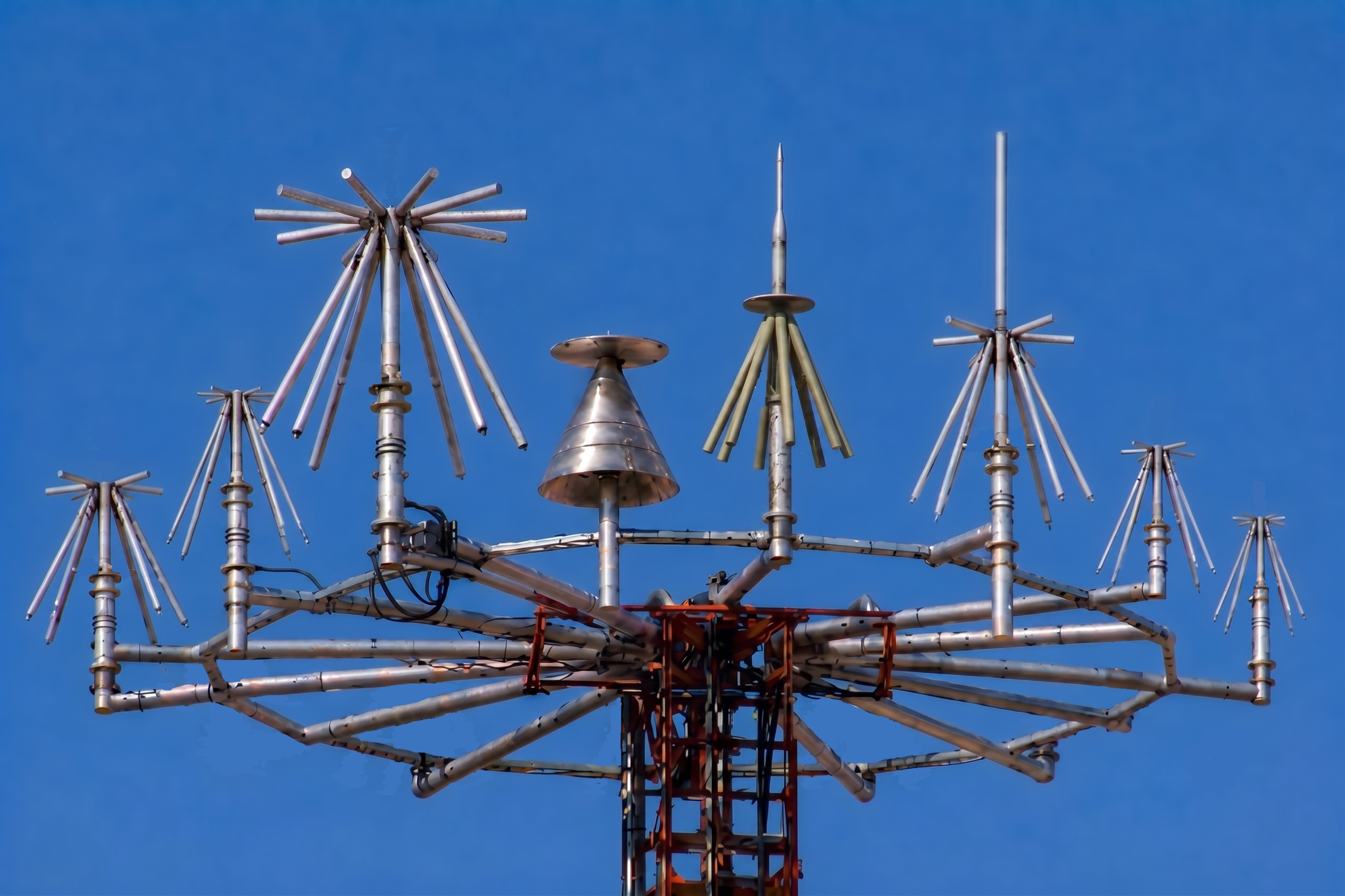

Discone
Defence communication depends on antennas that work every time, in any weather, without adjustment. Our ultra-wideband discone antennas are built for that: rugged, all-weather, omnidirectional and needing no field tuning. Five models cover 30 MHz to 6 GHz, so one antenna can serve a base station, a command post or a communication site.
STAR Antenna has built RF antennas since 1990. We can supply custom in-band and out-of-band versions to match your radio equipment and your operational frequency plan.
What defence users need from an antenna
- Reliability in the field: 6.5 mm thick disc and cone elements built for rough weather
- No adjustment on site: no field tuning or setup needed
- Weather protection: the termination and feed cable are enclosed inside the mounting pipe
- Material quality: chrome-plated brass or aluminium, with an all-brass design that reduces internal intermodulation
- Fast deployment: compact design, with the cone and disc removed for shipping and mounting hardware included
- All-round coverage: omnidirectional pattern for transmit and receive
Defence and military applications
- Base station and command post communication: wideband omnidirectional transmit and receive
- Multi-radio sites: one antenna covering several bands, which reduces mast clutter
- Temporary and tactical sites: quick to install, including on a 10 m or 15 m portable crank-up mast
- Signal reception and monitoring: listening across a wide band
- Communication system testing: a wideband omnidirectional reference antenna
Uses marked as typical for discone antennas should be confirmed against your own product data [verify]. If your use is not listed, send us the requirement.
Models for defence use
| Requirement | Model | Range |
|---|---|---|
| VHF low band | SOD-30100 | 30 to 100 MHz |
| VHF and UHF in one antenna | SOD-100700 | 100 to 700 MHz |
| UHF broadband | SOD-3201800 | 320 to 1800 MHz |
| UHF band, low VSWR (1:1.5) | SOD-330550 | 330 to 550 MHz |
| Microwave | SOD-7006000 | 700 to 6000 MHz |
All models are unity gain. See the full model table.
Need more range in one direction?
A discone covers all directions at unity gain. For directional gain toward a link partner, use a log periodic dipole antenna for defence use.
Complete your installation
Order mounting hardware, gas discharge tube surge arrestors and portable masts with the antenna, from one supplier.
Why STAR Antenna
- Manufacturing antennas since 1990
- Custom engineered single band, multi band and ultra wide band designs
- RoHS and JAS-ANZ certificates
- Export supply and OEM / ODM support
FAQs
Can you supply a custom frequency range?
Yes. Custom in-band and out-of-band versions are available on request.
Does it need tuning after installation?
No. It needs no field tuning or adjustment.
Is it suitable for outdoor, all-weather use?
Yes. It is built as an all-weather antenna, with thick elements and a weather-protected feed.
Do you supply to organisations outside India?
Yes. We supply worldwide and support OEM, ODM and international partners.
DISCONE :: Available Models
| # | Model | Frequency | Bandwidth | Gain | Datasheet | Enquiry |
|---|---|---|---|---|---|---|
| 1 | SOD-30100 | 30-100 MHz | 70 MHz | Unity Gain | 📄 | @ |
| 2 | SOD-100700 | 100-700 MHz | 600 MHz | Unity Gain | 📄 | @ |
| 3 | SOD-3201800 | 320-1800 MHz | 1480 MHz | Unity Gain | 📄 | @ |
| 4 | SOD-330550 | 330 - 550 MHz | 220 MHz | Unity Gain | 📄 | @ |
| 5 | SOD-7006000 | 700-6000 MHz | 5300 MHz | Unity Gain | 📄 | @ |
Disclaimer
1. All features, functionality and product specifications are subject to change without prior notice
2. Customized in-band and out-of-band versions are available on request
