Fiberglass Collinear

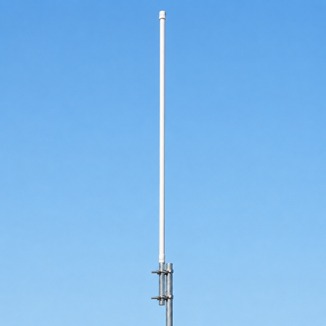

The SXC-1503 is an omnidirectional fiberglass collinear antenna for the 144 to 174 MHz VHF band. It radiates equally in all horizontal directions, so one antenna on a mast serves every user around the site, with no pointing or rotator.
It is built for outdoor, all-weather use. The fiberglass enclosure protects the radiators and is transparent to RF, and the aluminium base houses and protects the input termination, which also makes installation simple.
How the design works
The antenna uses cross-fed coaxial radiators stacked on one axis. This avoids the losses of the reactive phasing sections used in many collinear designs. The top section ends in a radiant load, which helps widen the bandwidth. Custom wider-bandwidth versions are available on request.
Why choose it for defence communication
- Omnidirectional coverage: gain varies by no more than ±0.5 dBi around the horizontal plane
- All-weather build: fiberglass tube designed to withstand specified wind loads
- Protected feed point: the input termination sits inside the aluminium base
- Quick to install: fits metal pipes of 1 to 2 inch outer diameter, with side-mount and large-pipe hardware available on request
- Options: different input connector types and colours, so it matches your radio and your site
Defence and military applications
- VHF base stations and command posts: all-round coverage for fixed and field radios
- Tactical and temporary sites: mounts on a portable mast for quick deployment
- VHF communication networks: one antenna serving many mobile and handheld users around a site
- Telemetry and control links: omnidirectional hub antenna for remote units on VHF
If your use is not listed, send us the requirement.
Specifications
| Item | Value |
|---|---|
| Model | SXC-1503 |
| Frequency range | 144 to 174 MHz |
| Gain | 3 dBi |
| Pattern | Omnidirectional, ±0.5 dBi variation in the horizontal plane |
| Enclosure | Fiberglass tube, RF transparent |
| Base | Aluminium, houses the input termination |
| Mounting | Fits 1 to 2 inch outer diameter metal pipe |
| Options | Connector type, colour, side-mount hardware, wider bandwidth, custom bands |
Complete the installation
Add mounting hardware and a gas discharge tube surge arrestor. For wider coverage across many frequencies, see our discone antennas. For directional gain toward one site, see our Yagi antennas.
Why STAR Antenna
- Manufacturing antennas since 1990
- Custom engineered single band, multi band and ultra wide band designs
- RoHS and JAS-ANZ certificates
- Export supply and OEM / ODM support
FAQs
What frequency does the SXC-1503 cover?
144 to 174 MHz in the VHF band.
What is the gain?
3 dBi, omnidirectional, with no more than ±0.5 dBi variation around the horizontal plane.
Can I choose the connector and colour?
Yes. Different input connector types and colours are available.
Can I get a wider bandwidth or another band?
Yes. Custom wider-bandwidth, in-band and out-of-band versions are available on request.
What size pipe does it fit?
Metal pipes with an outer diameter of 1 to 2 inches. Side-mount and larger-pipe hardware can be supplied on request.
